Loft Conversion or Dormer Roof Extension

Loft Conversion designs can be the obvious and cheapest option for adding a room to you home, you already have the space there.

A Dormer roof extension will give you more standing floor area and so presents more options. There are no special planning restrictions in Hull City council or the East Riding of Yorkshire council.

We have designed both options for bedrooms, master room with en-suite and dressing rooms, cinema rooms or children’s playrooms.

Design Considerations

The design should be driven by what you want to gain, what you can achieve and what you are willing to give up.

The first item to consider is the starting height as once you add floor joists and have insulated the rafters the height soon starts to disappear. We recommend that you have a minimum of 2.4 Metres (8 foot) from the top of the ceiling joist to underside of the rafters. You will need 2 Metre clearance over the new staircase and a 30 minute fire protected, smoke sealed route of escape. The new flight of stairs will take room from the ascending floor and will need to land in the roof without encroaching too much of the usable floor space.

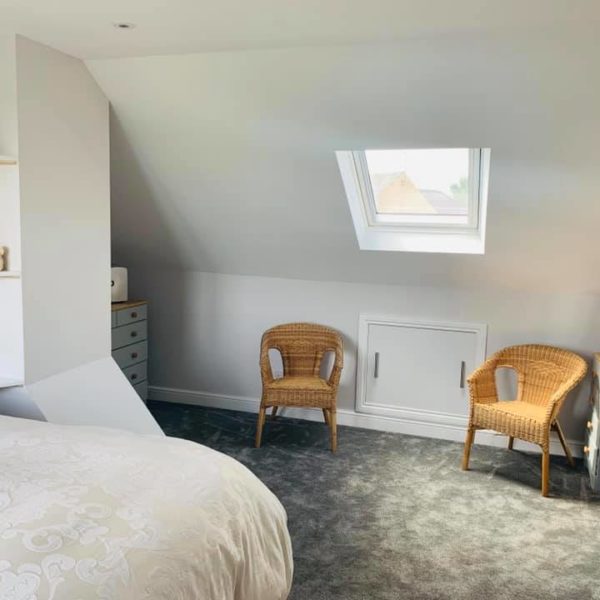

Windows can be put in the roof using Velux’s, gable ends or built into a new dormer. On 3rd floors or rooms with a finish floor over 4.5 but under 7.5 Metres it will need a sealed/protected landing top or bottom.

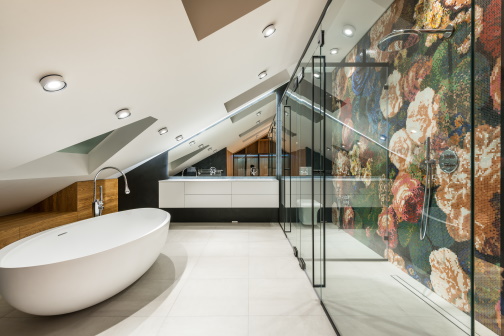

If you are putting a bathroom in the roof you need to think about the waste as it can be difficult to get new pipework through the floor.

loft conversion planning and building regulations east ridding of yorkshire

Design Options

Once the practical space has been created and the stairs determined you need to get the rooms to work as best as possible.

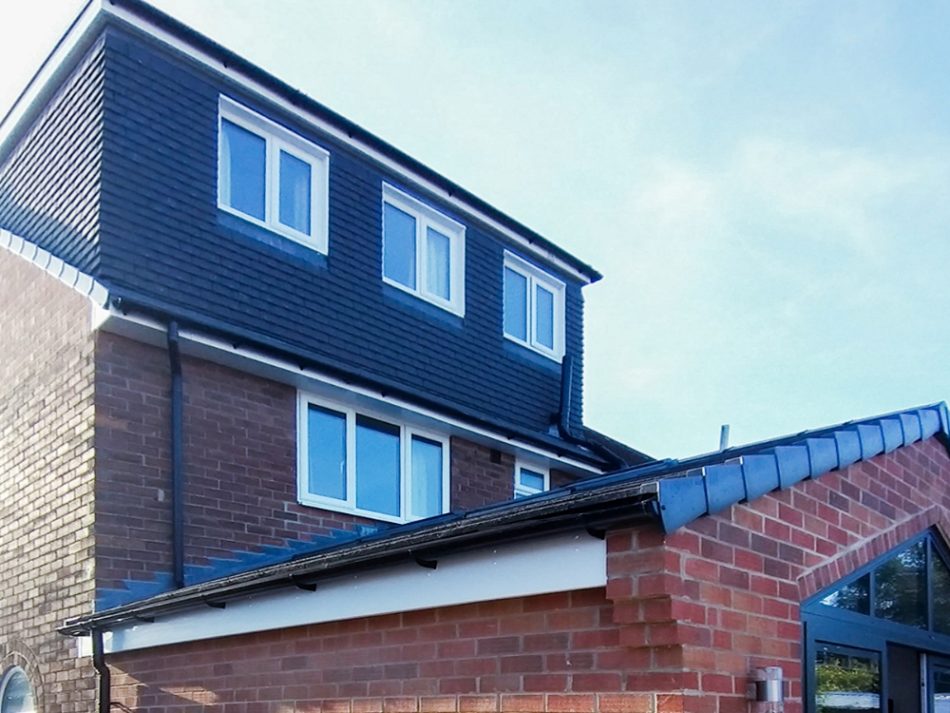

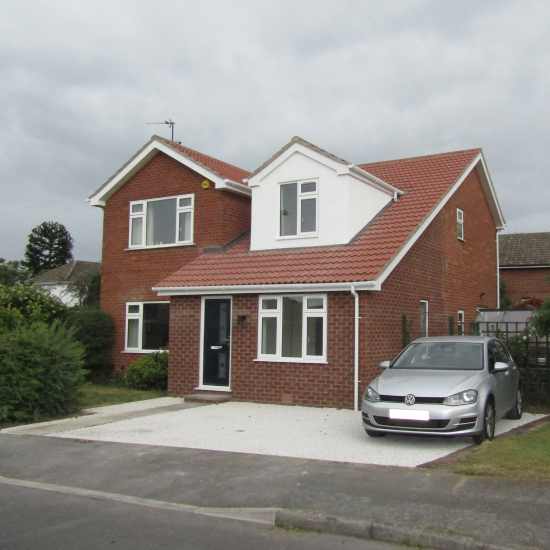

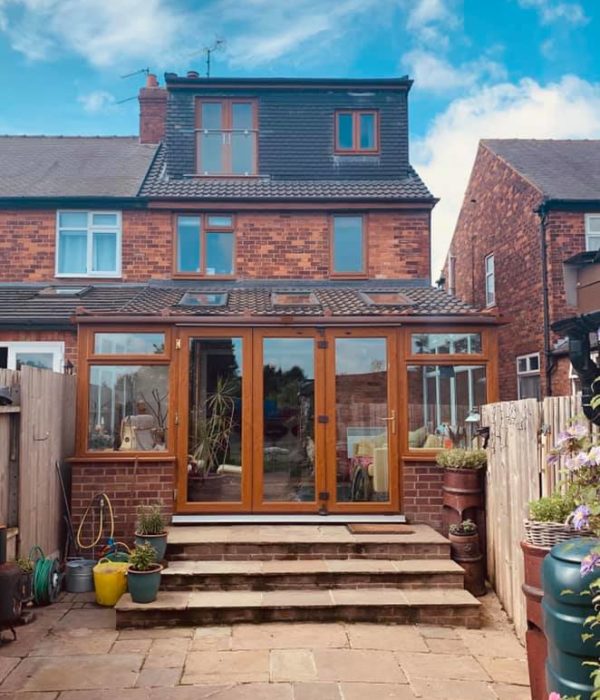

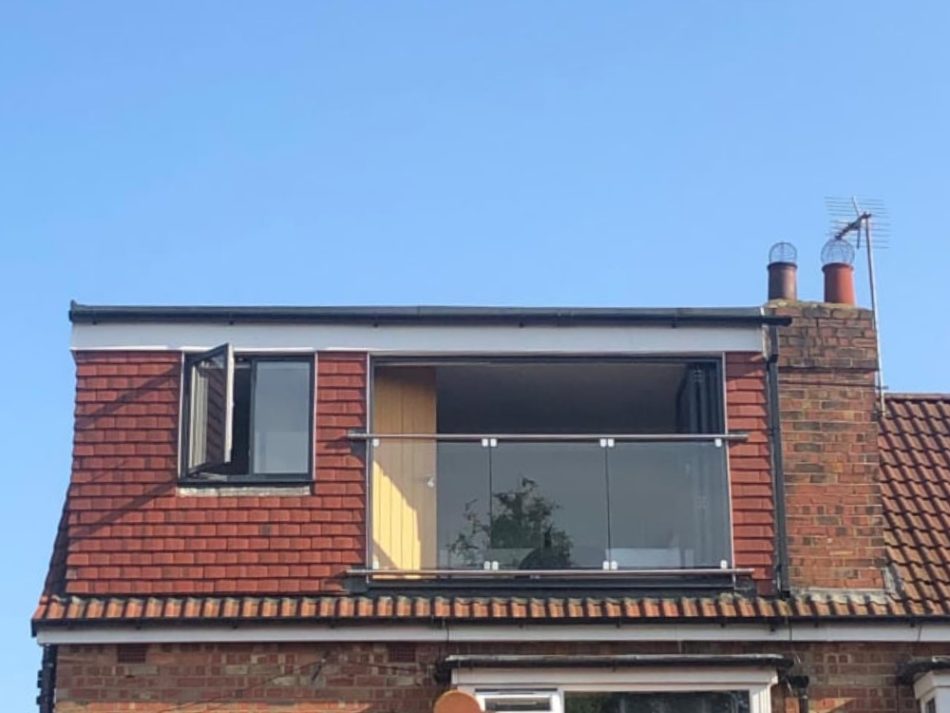

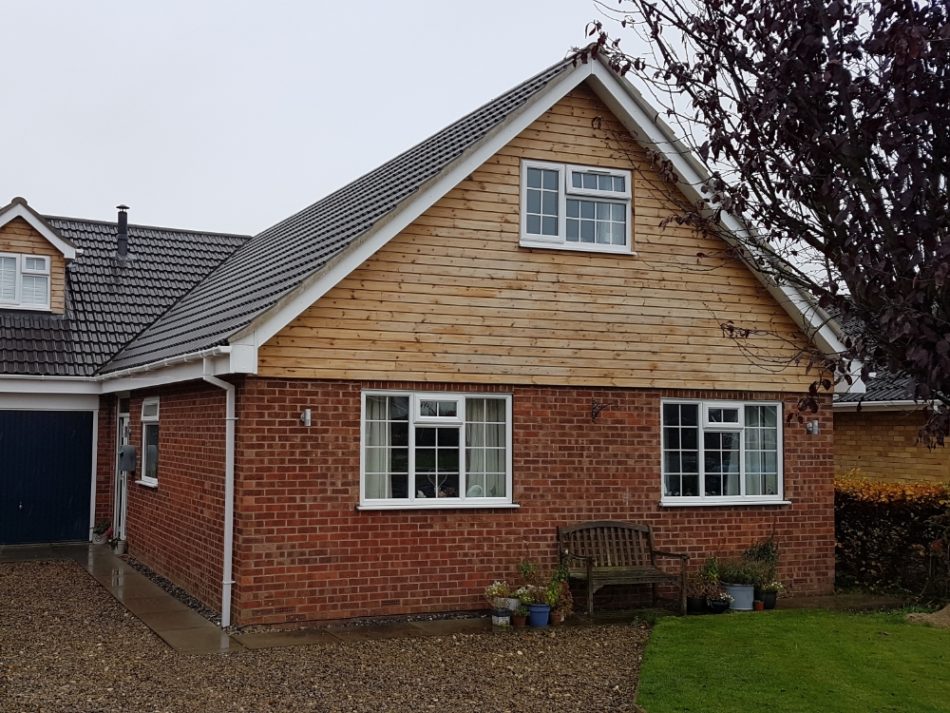

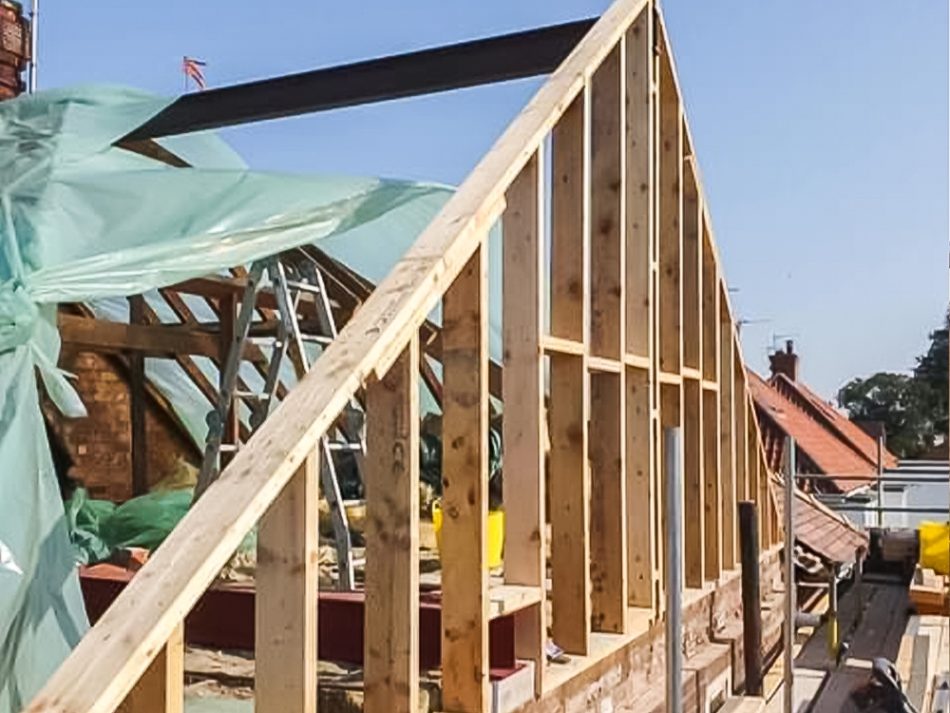

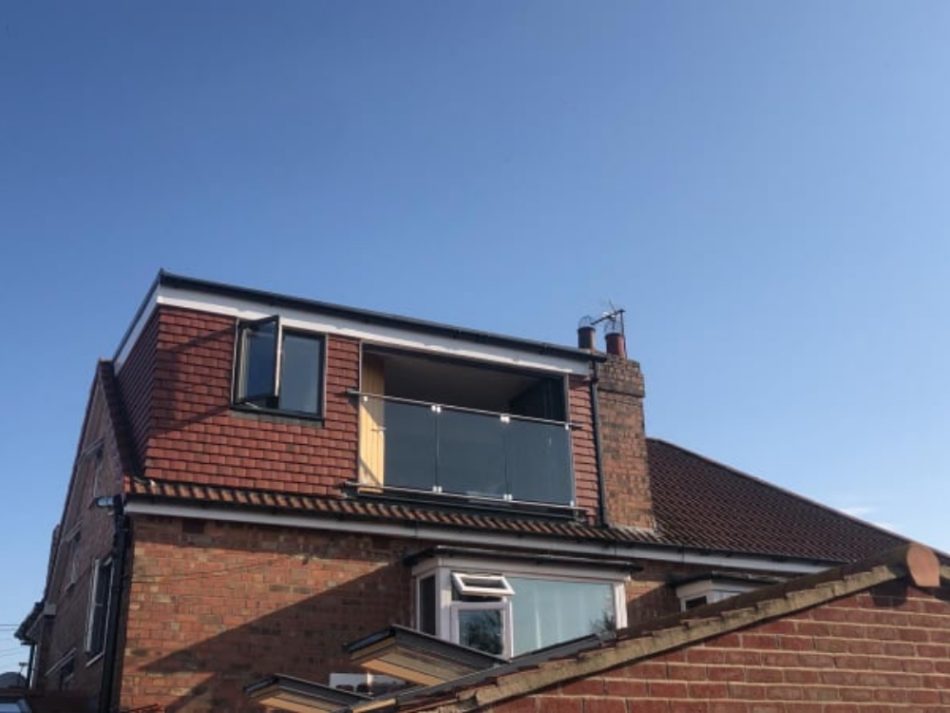

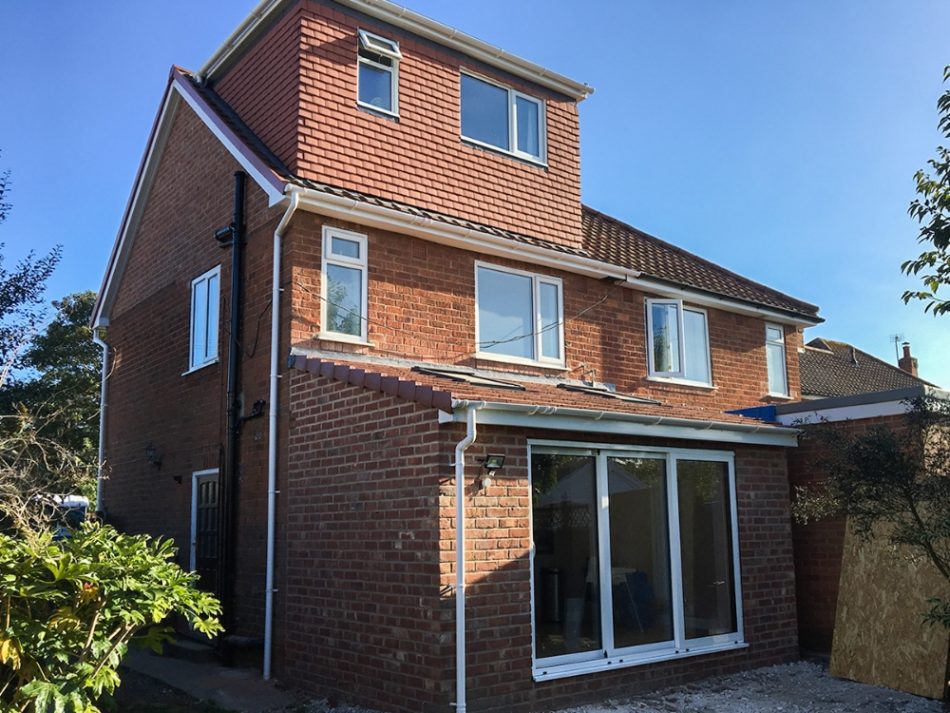

Diminishing headroom can be a nice feature, but you need to assess where you want to stand whilst using the space. If you are having a dormer there are different styles to consider, the box type dormer will add a lot of usable space but can look out of place on the roof. Small gable and sled mono pitch roofs will fit better in a tiled roof but don’t always give you lot more room. If you have a hipped roof you may consider building up a gable this will give you the maximum height over the full width of the house. There are a lot of glazing options to consider too, apart from the standard Velux type, adding depth can give more light and a better outlook.

Material finishes for dormers are critical though it can be a mistake trying to blend the dormer with the existing roof as the angles and size create contrast, it may be wise to make them different. In some circumstances when you don’t have the height you can remove the existing roof and build one to suit the space you require, as a result, and subject to planning constraints, you can build it to suit the space you require.

loft conversion planning and building regulations east ridding of yorkshire

Planning Permission

Most roof conversions can be done without the need for planning permission and instead should fall under the permitted development rights (see below).

When planning is required the roof will need to fit in with the street, for example if all the houses have the same ridge height you will not be able to raise yours. If the street does not have any dormers to the front, adding them would be considered out of place. Furthermore, clear glazing can only be put 7 meters from the boundary so typically you can only look out the front and rear.
If your loft conversion plans do require planning we will advise on the likelihood of gaining the planning approval.

planning and building regulation drawings hull

LOFT CONVERSION PERMITTED DEVELOPMENT

A loft conversion for your house is considered to be permitted development, not requiring an application for planning permission, subject to the following limits and conditions:

  • A volume allowance of 40 cubic metres additional roof space for terraced houses.
  • A volume allowance of 50 cubic metres additional roof space for detached and semi-detached houses.
  • No extension beyond the plane of the existing roof slope of the principal elevation that fronts the highway.
  • No extension to be higher than the highest part of the roof.
  • Materials to be similar in appearance to the existing house.
  • No verandas, balconies or raised platforms.
  • Side-facing windows to be obscure-glazed; any opening to be 1.7m above the floor.
  • Roof extensions not to be permitted development in designated areas**
  • Roof extensions, apart from hip to gable ones, to be set back, as far as practicable, at least 20cm from the original eaves.
  • The roof enlargement cannot overhang the outer face of the wall of the original house.
loft conversion planning and building regulations east ridding of yorkshire
loft conversion planning and building regulations east ridding of yorkshire

Building Regulations

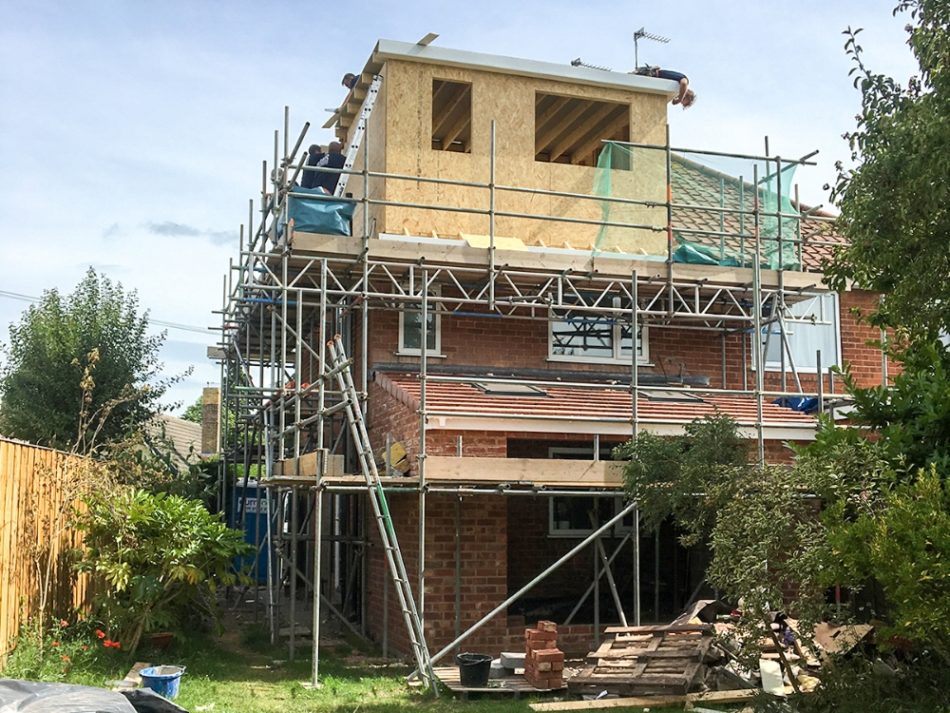

When changing the roof structure, you will always need building regulations, or your house insurance will be void. You can do a cheap box out, but it will make it very difficult when it comes to selling your property, not to mention unsafe. To adhere to the building regulations, you will need the input from an engineer, the new floor and roof will bare weight onto steel which needs calculating.

You will need a protected fire route with smoke seals and interlinked detector/alarms on each floor. The stairs must be safe from collision and not steeper than 42 degrees, plus protected from fire.

The new floor joist must be the correct size and spacing, determined from the unsupported span, the floor must be fire and sound protected.

New rooms will need to be thermally adequate, lit and ventilated. For dormer roof conversions, you will generally require a new ridge beam which again requires the design/calculations from an engineer.

We will work through design options with you knowing it can be converted into working building regulations detail drawings. Take a look at our Building Regulations Guide.

building regulations drawings hull

Building and Builders

Once you have your detailed drawing approved it is time to get some prices, if you desire, we can recommend you builders we trust.

There are specialist roof conversion companies out there, but with detailed drawings most competent builders can do the job. We advise that any quotation you consider will be written up clearly and well detailed. Both you and your builder need to know exactly what is included in the price or disagreements will occur at the end of the project.

We have extensive on-site knowledge and work closely with you and we will always advise where we think areas need exploring or issues may arise. We advise that you use our drawings in line with the quotation and any additional information we don’t provide such as plumbing and electrics is agreed in detail before the first fix goes in. It will be costly changing things once the initial preparation has been built. We offer help throughout for both you and the builder and will come to site if help is required.
